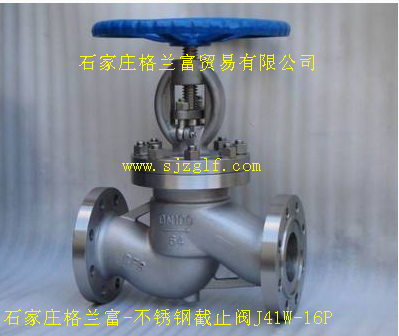

| 产品名称：不锈钢截止阀 |
| 产品型号：J41W-16P(R) |
产品说明：
|
|
|
型 号
|
公称通径
|
尺 寸 (mm)
|
|
J41W-16P
|
L
|
D
|
D1
|
D2
|
b-f
|
z-φd
|
|
|
|
15
|
130
|
95
|
65
|
45
|
14-2
|
4-14
|
195
|
100
|
|
20
|
150
|
105
|
75
|
55
|
14-2
|
4-14
|
215
|
120
|
|
25
|
160
|
115
|
85
|
65
|
14-2
|
4-14
|
240
|
140
|
|
32
|
180
|
135
|
100
|
78
|
16-2
|
4-18
|
250
|
160
|
|
40
|
200
|
145
|
110
|
85
|
16-3
|
4-18
|
285
|
200
|
|
50
|
230
|
160
|
125
|
100
|
16-3
|
4-18
|
300
|
220
|
|
65
|
290
|
180
|
145
|
120
|
18-3
|
4-18
|
345
|
240
|
|
80
|
310
|
195
|
160
|
135
|
20-3
|
8-18
|
350
|
280
|
|
100
|
350
|
215
|
180
|
155
|
20-3
|
8-18
|
410
|
320
|
|
125
|
400
|
245
|
210
|
185
|
22-3
|
8-18
|
470
|
350
|
|
150
|
480
|
280
|
240
|
210
|
24-3
|
8-23
|
495
|
400
|
|
200
|
600
|
335
|
295
|
265
|
26-3
|
12-23
|
580
|
450
|
|
250
|
650
|
405
|
355
|
320
|
30-3
|
12-25
|
680
|
550
|
|
300
|
750
|
460
|
410
|
375
|
30-3
|
12-25
|
850
|
600
|
|
型 号
|
公称通径
|
尺 寸 (mm)
|
|
L
|
D
|
D1
|
D2
|
b-f
|
z-φd
|
H
|
D0
|
|
J41W-25P
|
15
|
130
|
95
|
65
|
45
|
16-2
|
4-14
|
195
|
100
|
|
20
|
150
|
105
|
75
|
55
|
16-2
|
4-14
|
215
|
120
|
|
25
|
160
|
115
|
85
|
65
|
16-2
|
4-14
|
240
|
140
|
|
32
|
180
|
135
|
100
|
78
|
18-2
|
4-18
|
250
|
160
|
|
40
|
200
|
145
|
110
|
85
|
18-3
|
4-18
|
285
|
200
|
|
50
|
230
|
160
|
125
|
100
|
20-3
|
4-18
|
300
|
220
|
|
65
|
290
|
180
|
145
|
120
|
22-3
|
8-18
|
345
|
240
|
|
80
|
310
|
195
|
160
|
135
|
22-3
|
8-18
|
350
|
280
|
|
100
|
350
|
230
|
190
|
160
|
24-3
|
8-23
|
410
|
320
|
|
125
|
400
|
270
|
220
|
188
|
28-3
|
8-25
|
470
|
350
|
|
150
|
480
|
300
|
250
|
218
|
30-3
|
8-25
|
495
|
400
|
|
200
|
600
|
360
|
310
|
278
|
34-3
|
12-25
|
600
|
450
|
|
250
|
650
|
425
|
370
|
335
|
36-3
|
12-30
|
680
|
550
|
|
300
|
750
|
485
|
430
|
390
|
40-4
|
16-30
|
850
|
600
|
|
型 号
|
公称通径
|
尺 寸 (mm)
|
|
L
|
D
|
D1
|
D2
|
D6
|
b-f
|
z-φd
|
H
|
|
J41W-40P
|
15
|
130
|
95
|
65
|
45
|
40
|
16-2
|
4-14
|
195
|
|
20
|
150
|
105
|
75
|
55
|
51
|
16-2
|
4-14
|
215
|
|
25
|
160
|
115
|
85
|
65
|
58
|
16-2
|
4-14
|
240
|
|
32
|
180
|
135
|
100
|
78
|
66
|
18-2
|
4-18
|
250
|
|
40
|
200
|
145
|
110
|
85
|
76
|
18-3
|
4-18
|
285
|
|
50
|
230
|
160
|
125
|
100
|
88
|
20-3
|
4-18
|
300
|
|
65
|
290
|
180
|
145
|
120
|
110
|
22-3
|
8-18
|
345
|
|
80
|
310
|
195
|
160
|
135
|
121
|
22-3
|
8-18
|
350
|
|
100
|
350
|
230
|
190
|
160
|
150
|
24-3
|
8-23
|
410
|
|
125
|
400
|
270
|
220
|
188
|
176
|
28-3
|
8-25
|
470
|
|
150
|
480
|
300
|
250
|
218
|
204
|
30-3
|
8-25
|
495
|
|
200
|
600
|
375
|
320
|
282
|
260
|
38-3
|
12-30
|
600
|
|
J41H-64P
|
15
|
170
|
105
|
75
|
55
|
41
|
18-2
|
4-14
|
230
|
|
20
|
190
|
125
|
90
|
68
|
51
|
20-2
|
4-18
|
250
|
|
25
|
210
|
135
|
, 100
|
78
|
58
|
22-2
|
4-18
|
260
|
|
32
|
230
|
150
|
110
|
82
|
66
|
24-2
|
4-23
|
300
|
|
40
|
260
|
165
|
125
|
95
|
76
|
24-3
|
4-23
|
330
|
|
50
|
300
|
175
|
135
|
105
|
88
|
26-3
|
4-23
|
380
|
|
65
|
340
|
200
|
160
|
130
|
110
|
28-3
|
8-23
|
400
|
|
80
|
380
|
210
|
170
|
140
|
121
|
30-3
|
8-23
|
430
|
|
100
|
430
|
250
|
200
|
168
|
150
|
32-3
|
8-25
|
500
|
|
125
|
500
|
295
|
240
|
202
|
176
|
36-3
|
8-30
|
600
|
|
150
|
550
|
340
|
280
|
240
|
204
|
38-3
|
8-34
|
680
|
|
200
|
650
|
405
|
345
|
300
|
260
|
44-3
|
12-34
|
800
|
|
|
|
