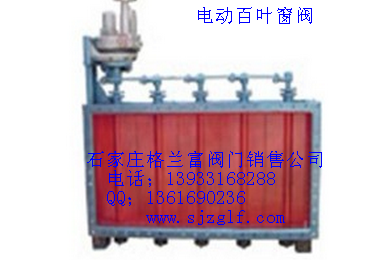

| 产品名称：电动百叶窗阀 |
| 产品型号：BYCF-1 |
| 产品说明：
|
一、用途
电动百叶式蝶阀配置执行机构广泛应用于建材、冶金、矿山、电动等生产过程，能自动控制或手动控制调节管路中介质流量。蝶板采用百叶多轴体结构、流体均匀、启闭力矩小、动作灵敏、性能可靠。
|
| 二、结构简图 |
|
|
三、主要性能参数
|
公称通径MPa
|
适用温度℃
|
适用介质
|
泄漏量
|
阀门启闭时间S
|
输入直流信号
|
输入通道
|
输入电阻
|
电源电压
|
介质流速
|
|
0.005
|
-3--350
|
粉尘合生气体
|
≤３
|
25
|
II型0-10mA
III型4-20mA
|
3个(pcs)
|
II型200Ω
III型250Ω
|
200V
50HZ
|
≤25m/s
|
|
| |
| |
四、主要外形尺寸及连接尺寸
|
AxB
|
A1xB1
|
A2xB2
|
L
|
L1
|
H
|
H
|
b
|
Z-Φd
|
X
|
Y
|
轴线
|
执行器
|
Wt/kgs
|
|
320x100
|
375x145
|
400x240
|
180
|
245
|
580
|
735
|
8
|
16-14
|
5
|
3
|
2
|
DKJ-210
|
184
|
|
320x250
|
375x295
|
400x330
|
180
|
245
|
625
|
825
|
8
|
16-14
|
5
|
3
|
2
|
DKJ-210
|
198
|
|
400x200
|
455x255
|
500x330
|
200
|
245
|
610
|
805
|
8
|
16-18
|
5
|
3
|
2
|
DKJ-210
|
215
|
|
400x320
|
455x375
|
500x420
|
200
|
245
|
870
|
915
|
8
|
16-18
|
5
|
3
|
2
|
DKJ-210
|
263
|
|
500x200
|
555x255
|
600x200
|
220
|
245
|
610
|
805
|
8
|
16-18
|
5
|
3
|
3
|
DKJ-210
|
272
|
|
500x400
|
555x455
|
600x500
|
220
|
245
|
670
|
915
|
8
|
20-18
|
5
|
3
|
3
|
DKJ-210
|
292
|
|
630x320
|
685x375
|
730x420
|
220
|
245
|
610
|
805
|
10
|
20-18
|
7
|
5
|
2
|
DKJ-210
|
322
|
|
630x400
|
685x455
|
730x500
|
220
|
245
|
710
|
995
|
10
|
24-18
|
7
|
3
|
3
|
DKJ-210
|
354
|
|
800x400
|
855x455
|
900x500
|
240
|
300
|
790
|
945
|
10
|
24-18
|
7
|
5
|
4
|
DKJ-310
|
443
|
|
800x630
|
855x685
|
900x730
|
240
|
300
|
905
|
1075
|
10
|
28-18
|
7
|
7
|
4
|
DKJ-310
|
590
|
|
1000x500
|
1070x570
|
1130x830
|
260
|
300
|
1005
|
1270
|
10
|
24-23
|
7
|
5
|
4
|
DKJ-310
|
640
|
|
1000x800
|
1070x870
|
1130x930
|
260
|
300
|
1105
|
1505
|
10
|
28-23
|
7
|
7
|
4
|
DKJ-310
|
770
|
|
1250x630
|
1320x700
|
1380x760
|
280
|
300
|
1075
|
1705
|
10
|
32-23
|
9
|
7
|
5
|
DKJ-310
|
790
|
|
1250x1000
|
1320x1070
|
1380x1130
|
280
|
300
|
1300
|
1575
|
10
|
32-23
|
9
|
7
|
5
|
DKJ-410
|
920
|
|
1400x800
|
1470x1320
|
1530x930
|
300
|
385
|
1175
|
1705
|
10
|
36-23
|
11
|
7
|
5
|
DKJ-410
|
940
|
|
1400x1250
|
1470x1470
|
1530x1380
|
300
|
385
|
1300
|
2025
|
10
|
40-23
|
11
|
9
|
5
|
DKJ-410
|
1240
|
|
1600x1000
|
1670x1070
|
1730x1380
|
320
|
385
|
175
|
1775
|
10
|
36-23
|
11
|
7
|
5
|
DKJ-410
|
1540
|
|
1600x1250
|
1670x1320
|
1930x1380
|
320
|
385
|
1300
|
2025
|
10
|
40-23
|
11
|
9
|
5
|
DKJ-410
|
1680
|
|
1800x1250
|
1870x1320
|
1930x1530
|
340
|
420
|
1450
|
2175
|
10
|
44-23
|
13
|
9
|
6
|
DKJ-510
|
1846
|
|
1800x1400
|
1870x1470
|
2130x1380
|
340
|
420
|
1525
|
2325
|
10
|
48-23
|
13
|
1
|
6
|
DKJ-510
|
1953
|
|
2000x1250
|
2070x1320
|
2130x1380
|
360
|
420
|
1450
|
2175
|
10
|
48-23
|
15
|
9
|
6
|
DKJ-510
|
2170
|
|
2000x1800
|
2070x1670
|
2130x1730
|
360
|
420
|
1620
|
2520
|
12
|
52-23
|
15
|
11
|
6
|
DKJ-510
|
2392
|
|
2500x1800
|
2570x1870
|
2630x1730
|
420
|
450
|
1695
|
2595
|
12
|
56-23
|
17
|
11
|
8
|
DKJ-610A
|
2740
|
|
2500x2000
|
2570x2070
|
2630x2130
|
420
|
450
|
1895
|
2995
|
12
|
64-20
|
17
|
15
|
8
|
DKJ-610A
|
2801
|
|
2800x2500
|
2870x2570
|
2930x2630
|
440
|
450
|
2145
|
3195
|
12
|
72-23
|
19
|
17
|
8
|
DKJ-610A
|
3118
|
|
3200x2800
|
3270x2870
|
3330x2930
|
480
|
480
|
2325
|
3825
|
12
|
80-23
|
21
|
19
|
10
|
DKJ-610
|
3535
|
|
3600x3200
|
3670x3270
|
3730x3330
|
520
|
480
|
2525
|
4225
|
12
|
88-23
|
23
|
21
|
10
|
DKJ-610
|
4018
|
|
4000x3600
|
4070x4670
|
4230x4730
|
560
|
480
|
2725
|
4825
|
1
|
100-23
|
27
|
23
|
10
|
DKJ-610
|
4532
|
|
|
|
